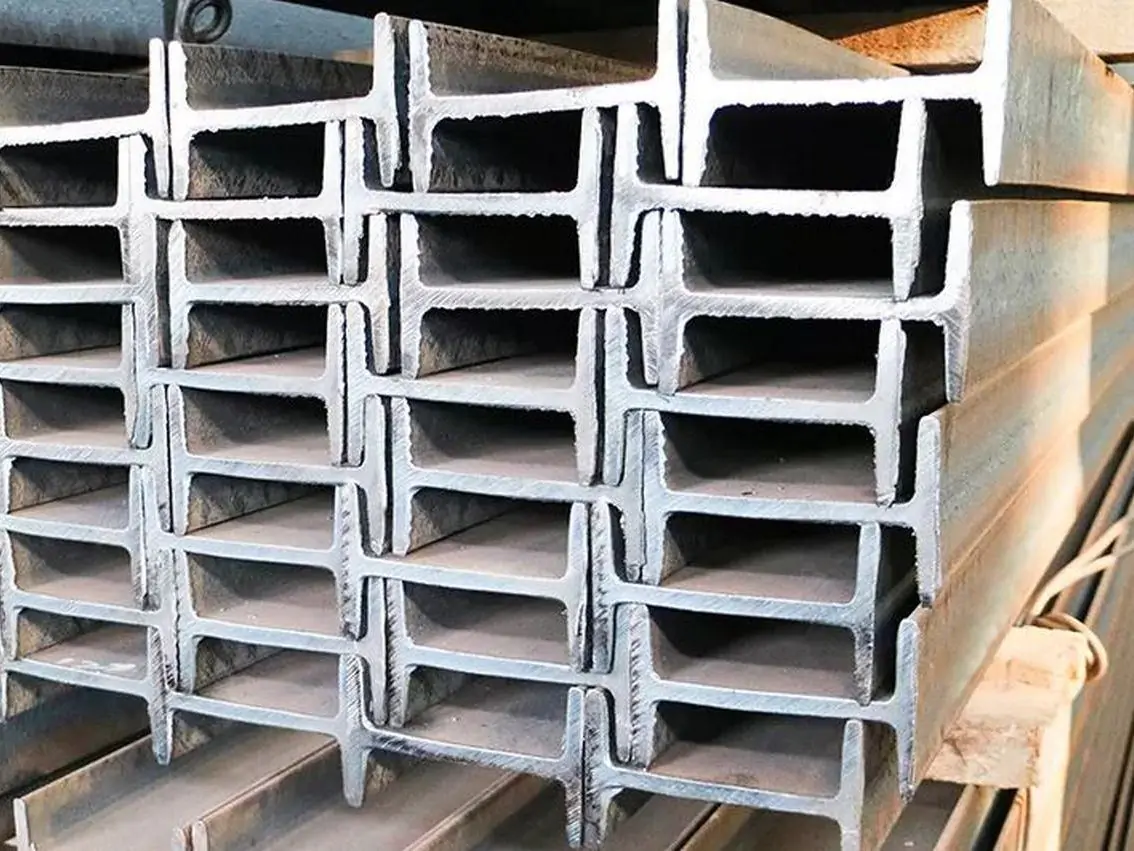

| Boyut | G-Birim Ağırlık (kg/m) |
h: Yükseklik (mm) |
b: Genişlik (mm) |
tw Gövde Kalınlığı (mm) |
tf: Flanş Kalınlığı (mm) |
r: İç Köşe Yarıçapı (mm) |
1 Çubuk Ağırlığı kg/=12.1m |
1 Ton için Toplam Boy m/ton |
|---|---|---|---|---|---|---|---|---|
| 100 | 20,4 | 100 | 100 | 6,0 | 10,0 | 12 | 247 | 49 |
| 120 | 29,7 | 120 | 120 | 6,5 | 11,0 | 12 | 323 | 37 |
| 140 | 33,7 | 140 | 140 | 7,0 | 12,0 | 12 | 408 | 30 |
| 160 | 42,6 | 160 | 160 | 8,0 | 13,0 | 15 | 515 | 23 |
| 180 | 42,2 | 180 | 180 | 8,5 | 14,0 | 15 | 620 | 20 |
| 200 | 62,3 | 200 | 200 | 9,0 | 15,0 | 18 | 742 | 16 |
| 220 | 72,5 | 220 | 220 | 9,5 | 16,0 | 18 | 865 | 14 |
| 240 | 83,2 | 240 | 240 | 10,0 | 17,0 | 21 | 1007 | 12 |
| 260 | 93,0 | 260 | 260 | 10,0 | 17,5 | 24 | 1125 | 11 |
| 280 | 103,0 | 280 | 280 | 10,5 | 18,0 | 24 | 1246 | 10 |
| 300 | 117,0 | 300 | 300 | 11,0 | 19,0 | 27 | 1416 | 9 |
| 320 | 127,0 | 320 | 300 | 11,5 | 20,5 | 27 | 1537 | 8 |
| 340 | 134,0 | 340 | 300 | 12,0 | 21,5 | 27 | 1621 | 7 |
| 360 | 142,0 | 360 | 300 | 12,5 | 22,5 | 27 | 1738 | 7 |
| 400 | 155,0 | 400 | 300 | 13,5 | 24,0 | 27 | 1876 | 6 |
| 450 | 171,0 | 450 | 300 | 14,0 | 26,0 | 27 | 2069 | 6 |
| 500 | 187,0 | 500 | 300 | 14,5 | 28,0 | 27 | 2263 | 5 |
| 550 | 199,0 | 550 | 300 | 15,0 | 29,0 | 27 | 2408 | 5 |
| 600 | 212,0 | 600 | 300 | 15,5 | 30,0 | 27 | 2565 | 5 |
