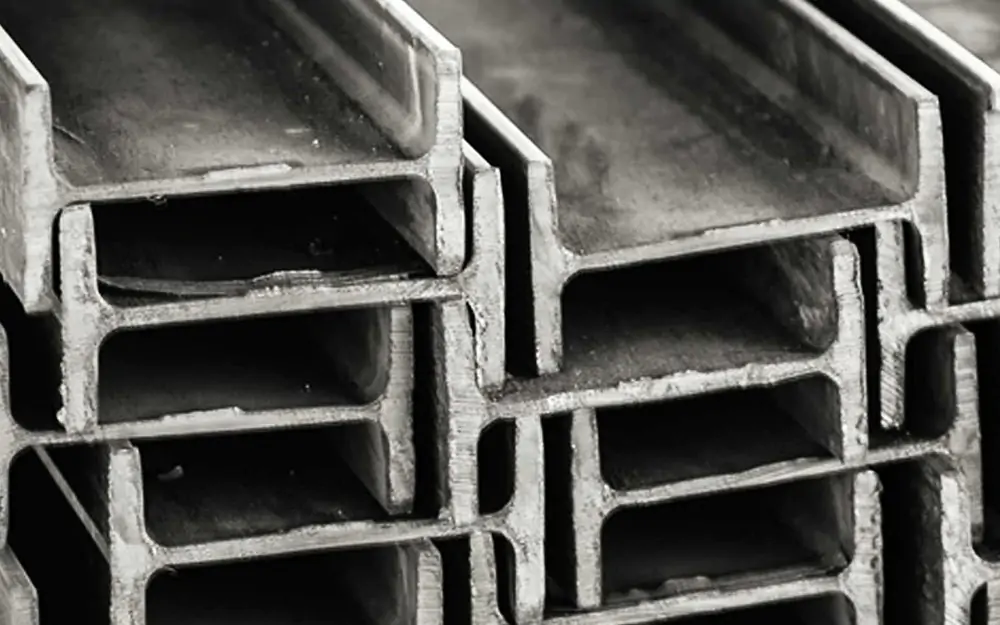

| Boyut | G-Birim Ağırlık (kg/m) |
h: Yükseklik (mm) |
b: Genişlik (mm) |
tw Gövde Kalınlığı (mm) |
tf: Flanş Kalınlığı (mm) |
r: İç Köşe Yarıçapı (mm) |
1 Çubuk Ağırlığı kg/=12.1m |
1 Ton için Toplam Boy m/ton |
|---|---|---|---|---|---|---|---|---|
| 100 | 16,7 | 96 | 100 | 5,0 | 8,0 | 12 | 202 | 62 |
| 120 | 19,9 | 114 | 120 | 5,0 | 8,0 | 12 | 241 | 50 |
| 140 | 24,7 | 113 | 140 | 5,5 | 8,5 | 12 | 299 | 40 |
| 160 | 30,4 | 152 | 160 | 6,0 | 9,0 | 15 | 368 | 33 |
| 180 | 35,5 | 171 | 180 | 6,0 | 9,5 | 15 | 430 | 28 |
| 200 | 42,3 | 190 | 200 | 6,5 | 10,0 | 18 | 512 | 24 |
| 220 | 50,5 | 210 | 220 | 7,0 | 11,0 | 18 | 611 | 20 |
| 240 | 60,3 | 230 | 240 | 7,5 | 12,0 | 21 | 730 | 17 |
| 260 | 68,2 | 250 | 260 | 7,5 | 12,5 | 24 | 825 | 15 |
| 280 | 76,4 | 270 | 280 | 8,0 | 13,0 | 24 | 924 | 13 |
| 300 | 88,3 | 290 | 300 | 8,5 | 14,0 | 27 | 1068 | 11 |
| 320 | 97,6 | 310 | 300 | 9,0 | 15,5 | 27 | 1181 | 10 |
| 340 | 105,0 | 230 | 300 | 9,5 | 16,5 | 27 | 1271 | 10 |
| 360 | 112,0 | 350 | 300 | 10,0 | 17,5 | 27 | 1355 | 9 |
| 400 | 125,0 | 390 | 300 | 11,0 | 19,0 | 27 | 1513 | 8 |
| 450 | 140,0 | 440 | 300 | 11,5 | 21,0 | 27 | 1694 | 7 |
| 500 | 155,0 | 490 | 300 | 12,0 | 23,0 | 27 | 1876 | 6 |
| 550 | 166 | 540 | 300 | 12,5 | 24,0 | 27 | 2009 | 6 |
| 600 | 178 | 590 | 300 | 13,0 | 25,0 | 27 | 2154 | 6 |
